This page documents the API for interacting with fields and the global objects in flows.

In general flows are JavaScript code and thus any valid JavaScript is allowed. See https://developer.mozilla.org/en-US/docs/Web/JavaScript/A_re-introduction_to_JavaScript for a JavaScript intro. The objects Inputs, Fields and all the rest of the modules listed below are made available for all flows s.t. they can be accessed in the JavaScript code.

We include the utility library lodash 4.7.10 in all flows. See https://lodash.com/docs the available functions.

There is also a tutorial to the Cuesta tool which also contains a few examples of flows. It is highly recommend that you go through the tutorial before diving into this reference documentation.

Inputs

Inputs to a flow can be accessed via the Inputs array. Inputs are generally strings.

Example

var mi = Inputs["myinput"];

---

Fields

Fields represent user-interface elements which can be manipulated from a flow. The basics of defining a fields and how to use it in flows is described in detail in the field documentation.

---

Global objects

The global objects listed below are available in all flows.

Dialog

The dialog object contains methods for presenting the user with information or requesting information from the user at runtime.

Info dialog

Shows a blue information dialog with an OK button. The flow does not proceed until the user has clicked OK. Options is an optional parameter.

Parameters

• header is the title of the dialog
• text is the text content shown
• options is a JavaScript object, supported properties:
  • buttons is an array of buttons to display in the bottom part of the dialog
  • timeout an int determining when the dialog should auto-close
  • sound a string (one of asterisk, beep, exclamation, hand, question) which indicates a system sound to play once the dialog is shown
  • throws a boolean indicating whether to throw an exception if the dialog was cancelled - default is true

The buttons array consists of button objects with the following properties:

• value the text to display on the button (should be unique for a dialog)
• isDefault (boolean) a true/false value indicating whether or not this button is the default (i.e. will be activated on the enter-key) - should only be set to true for one button per dialog – default is false
• isCancel (boolean) indicating whether or not the button should cancel the dialog – default is false


The default value for buttons is an “OK” button:

[
  { 'value': 'OK' }
]

The button clicked will be available as a property named button on the return value from the dialog. If the user clicks a cancel button then an exception is thrown.

Example

Dialog.info("Hello", "This is some text to be shown.", {});

With options:

Dialog.info(
  "Hello",
  "Some text - I will max be shown for 10 secs.",
  { timeout: 10 }
);

With pre-defined buttons:

var r = Dialog.info(
  "Hello",
  "Do you want to continue",
  { timeout: 10
  , buttons: [
      { 'value': 'No', 'isCancel': true },
      { 'value': 'Maybe' },
      { 'value': 'Yes' },
    ]
  }
);
if (r.button == 'Yes') {
  // user answered yes - we can continue
  ...
}

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Warn dialog

Shows a red warning dialog to the user with an OK button. Similar to the info dialog, but red. Options is an optional parameter.

Parameters

• header is the title of the dialog
• text is the text content shown
• options is a JavaScript object, supported properties:
  • buttons is an array of buttons to display in the bottom part of the dialog (see info-dialog for further information)
  • timeout an int determining when the dialog should auto-close
  • sound a string (one of asterisk, beep, exclamation, hand, question) which indicates a system sound to play once the dialog is shown
  • throws a boolean indicating whether to throw an exception if the dialog was cancelled - default is true

Example

Dialog.warn("Warning!!", "This is some text to be shown. Consider yourself warned.");

// Do not throw an exception when dialog is cancelled
Dialog.warn("Take heed", "You may enter at your peril", { throws: false });

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Input dialog

Shows a dialog into which the user may input data. The type of data which can be input is determined by the options parameter.

Parameters

• header is the title of the dialog
• text is the text content shown
• options is a JavaScript object which determines the input the user should provide. Each property on the object is one input the user must provide. The name of each property is used when returning the results. It can also contain the following properties which affect the dialog itself:
  • buttons is an array of buttons to display in the bottom part of the dialog (see info-dialog for further information)
  • throws a boolean indicating whether to throw an exception if the dialog was cancelled - default is true
  • submitOnValidation is a boolean flag that determines whether or not the dialog will be automatically submitted when all fields validate - or not
  • maxDialogWidth/maxDialogHeight (int) change the default maximum width and height for the window,
  • promptWidth sets the with of the label/prompt
  • sound a string (one of asterisk, beep, exclamation, hand, question) which indicates a system sound to play once the dialog is shown
  • dialogPositionTop/dialogPositionLeft (int) to change the default position of the dialog. Note that if one of these properties are set then the dialog will be positioned on the main display.
  • foregroundColor and backgroundColor can be used to set the overall colors for the dialog (use html/hex encoded strings)
• savedInputs is an optional result from a previous display of the dialog - this can be used to pre-fill the dialog with inputs already filled

Inputs given as complex objects

If the value of a property of options is either a complex object or a function it is treated as an input element. If you supply an object then the following properties are available to specify:

Each input should contain the following variables:

• type to determine which UI element to display, TEXT, PASSWORD, FILE, SELECT, RADIO, DATE, MULTITEXT, TYPEAHEAD, HEADER, DIVIDER, SPACER and DESCRIPTION are the supported options - see options for each type below
• dependsOn is an expression that determines when this input should be shown. You can either specify the name of another property - in which case the input will be shown if the other property has a value, or you can specify a <name-of-other-property>=<value> type string - in which case the input will be shown if the other property has the given value. If dependsOn is empty the input will always be shown. Using a ~ instead of = in the expression will cause the value to be interpreted as a regular expression (from 1.8.0).
• promptWidth sets the with of the label/prompt

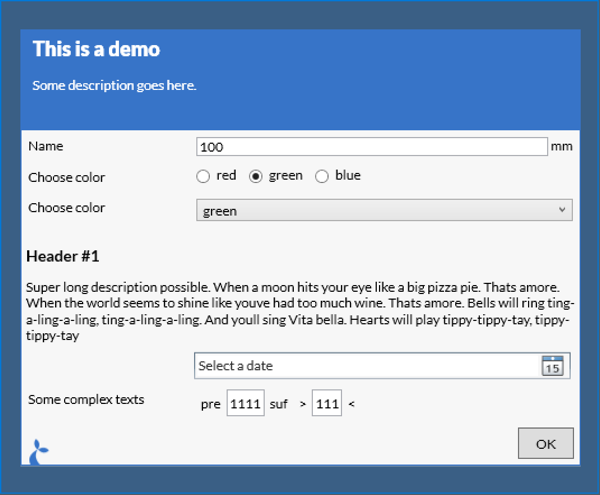

An example of an input dialog with a few objects is:

Dialog.input('header goes here', 'text goes here', {
  myTextInput: {
    prompt: 'Input text here'
    type: 'TEXT',
    value: 'Default value'
  },
  anotherInput: {
    prompt: 'Another prompt',
    type: 'PASSWORD'
  }
);

This will display a dialog with two inputs, one for text and one for password.

Inputs given as functions

If the value of an option is a function then that function is invoked with the current state of the form allowing you to build complex interacting elements. The following example demonstrates this by having the properties of the RADIO input determined by the previous inputs.

Dialog.input('header goes here', 'text goes here', {
  radioOptions: {
    prompt: 'Options separated by ","',
    type: 'TEXT',
    value: 'a,b,c'
  },
  radioPrompt: {
    prompt: 'The prompt for the radio',
    type: 'TEXT',
    value: 'Radio'
  },
  radioPromptWidth: {
    prompt: 'The prompt width for the radio',
    type: 'TEXT',
    value: '150'
  },
  radioOrientation: {
    prompt: 'Orientation',
    type: 'RADIO',
    selectBetween: ['vertical', 'horizontal']
  },
  radioTableLayout: {
    prompt: 'Table layout',
    type: 'MULTITEXT',
    texts: [
      { name: 'columns', prefix: 'Columns', value: "0" },
      { name: 'rows', prefix: 'Rows', value: "0" }
    ]
  },
  radioVisible: {
    prompt: 'Show RADIO',
    type: 'RADIO',
    selectBetween: ['No', 'Yes'],
    value: 'No'
  },
  d: { type: 'DIVIDER' },
  radio: function (s) {
    return {
      prompt: s.radioPrompt,
      selectBetween: s.radioOptions && s.radioOptions.split(','),
      orientation: s.radioOrientation,
      promptWidth: parseInt(s.radioPromptWidth || "150"),
      columns: parseInt(s.radioTableLayout && s.radioTableLayout.columns || "0"),
      rows: parseInt(s.radioTableLayout && s.radioTableLayout.rows || "0"),
      dependsOn: s.radioVisible == 'Yes',
      type: 'RADIO'
    };
  }
});

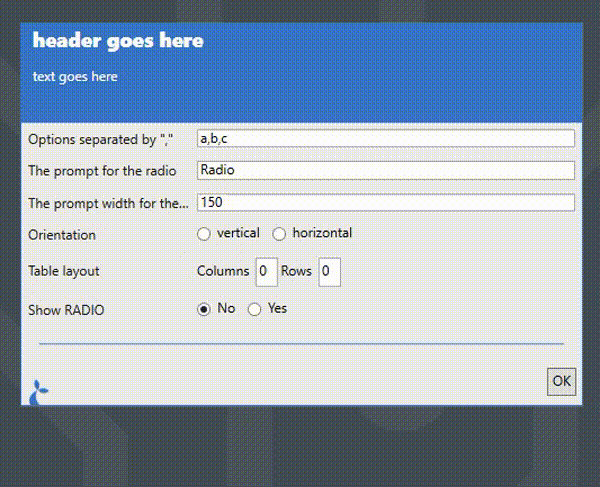

When you run this flow you can use the inputs above the divider to control the appearance of the RADIO. The dependsOn property can be set to a boolean value to do complex dependency validations.

The properties of each option item depends on the value of its type:

TEXT and PASSWORD

• prompt is the text which is displayed as an hint to the user for this option.
• promptAlignment is the alignment the prompt should follow. Available options are: “Center”, “Justify”, “Left” (default), “Right”.
• value is an optional default value for the input.
• prefix and suffix are texts to be shown before and after the input field.
• focus is whether to focus this field - if multiple fields have focus set to true then the last one will be focused.
• multiline whether multiple lines are allowed (default false).
• validation is a validation object (see below).

FILE and DATE

• prompt is the text which is displayed as an hint to the user for this option.
• value is an optional default value for the input - for DATE this may be a javascript Date object
• focus is whether to focus this field.
• validation is a validation object (see below).

SELECT and RADIO

• prompt is the text which is displayed as an hint to the user for this option,
• value is an optional default value for the input,
• selected is whether or not the option starts out as selected (checked) or not - only applicable for SELECT
• selectBetween is a array of strings which determines the available dropdown options if the type has value SELECT,
• orientation can be either ‘vertical’ or ‘horizontal’ and determines the layout direction,
• columns is the number of columns to display input elements in to help with alignment - setting columns will void the orientation setting,
• rows is the number of rows to display input elements in to help with alignment,
• focus is whether to focus this field
• validation is a validation object (see below).

CHECKBOX

• prompt is the text which is displayed as an hint to the user for this option,
• value is an optional default value for the input,
• selected is whether or not the option starts out as selected (checked) or not - only applicable for SELECT
• options is a array of objects which determines the checkboxes,
• orientation can be either ‘vertical’ or ‘horizontal’ and determines the layout direction,
• columns is the number of columns to display input elements in to help with alignment - setting columns will void the orientation setting,
• rows is the number of rows to display input elements in to help with alignment,
• focus is whether to focus this field
• validation is a validation object (see below).

Each object in the options array can have the following properties:

• name the name of the item,
• suffix/prefix the suffix and prefix shown,
• value the value
• selected whether the checkbox is selected.

A simple example of a CHECKBOX input could be:

Dialog.input(..., {
  cb: {
    prompt: "Checkbox example",
    type: "CHECKBOX",
    options: [{name: "cb1", selected: true}, {name: "cb2"}]
  }
});

HEADER and DESCRIPTION

• value is used as the text displayed.

MULTITEXT

• texts is an array of text inputs to show - each input may have the following properties set;
  • name is used to refer to the input,
  • prefix and suffix are texts to be shown before and after the input field,
  • value is the default value,
  • multiline whether multiple lines are allowed (default false)
  • focus is whether to focus this field
  • preselect an object which will be pre-selected
  • validation is a validation object (see below).

TYPEAHEAD

• selectFrom is the construction which determines what the user is able to select from.

The value of selectFrom can be a list of strings in which case the list is simply displayed. E.g.:

...
myProp: {
  type: 'TYPEAHEAD',
  selectFrom: ['Option 1', 'Option 2']
}
...

It can be a list of objects with a value or display property that is displayed for the user. As in the example below where the user can select or get auto-completion on ‘a’ and ‘b’.

...
myProp: {
  type: 'TYPEAHEAD',
  selectFrom: [
    {display: 'a', id: 100},
    {display: 'b', id: 100}
  ],
  preselect: { display: 'a', id: 100}
}
...

The value of the myProp property after the input dialog is completed will be the full object selected, e.g. {display: 'a', id: 100}.

You can also supply arbitrary objects and a formatting string.

...
myProp: {
  type: 'TYPEAHEAD',
  selectFrom: {
    format: '{{foo}} with id {{id}}',
    items: [
      {foo: 'a', id: 100},
      {foo: 'b', id: 100}
    ],
  }
}
...

This will display e.g. “a with id 100” in the suggestion dropdown. The object selected will be available in the myProp property (not just the formatted string). In addition to the format string, you can also set the following options:

• minInputLength the minimum number of characters the user must input in order to get suggestions
• filterMode which mode should be used to filter the suggestions; select from 'contains', 'startswith', 'endswith'.

A callback function can also be used. The function supplied will get invoked with the string entered by the user. E.g.:

...
myProp: {
  type: 'TYPEAHEAD',
  selectFrom: {
    format: '{{foo}} with id {{id}}',
    items: function(searchString) {
      return [
        {foo: 'a', id: 100},
        {foo: 'b', id: 100}
      ];
    },
  }
}
...

In this case we’re not using the input for anything but other cases might do so, like when fetching options from e.g. a remote resource (via http or similar).

Lastly, the contents of a Table can be used as options.

...
myProp: {
  type: 'TYPEAHEAD',
  selectFrom: Table.map('nameOfTable', 'propToIndexBy').selectFrom('{{foo}} with id {{id}}')
}
...

This will use the table rows and generate a formatted string for each row - the result will again be an object representing the row.

TABLE

The TABLE input can be used for tabular (ie like a spreadsheet) input. It supports the following properties.

• tableHeader is a list of strings or a list of objects with a name and a type and defines the columns of a table
• tableRows is the initial list of rows - the user may add more rows to the table

An example is given here:

var result = Dialog.input('Table Example', 'Show a table in an input dialog', {
  t: {
    type: 'TABLE',
    prompt: 'Enter names and ages',
    tableHeader: [{name: 'Name', type: 'string'},{name: 'Age', type: 'int'}],
    tableRows: [['Alice', 42], ['Bob', 43]]
  }
});

LIST OF

The LISTOF input type is a compound input type. It can be used to allow the user to input multiple items each composed of a number of other input types. For instance; to input a number of measurements we could make a configuration as follows:

var results = Dialog.input('List of example', 'Input a number of measurements', {
  measurements: {
    prompt: 'Add measurements here',
    type: 'LISTOF',
    template: {
      mtype: {
        prompt: 'Measurement type',
        type: 'RADIO',
        selectBetween: ['TypeA', 'TypeB']
      },
      mvalue: {
        prompt: 'Measurement value',
        type: 'TEXT'
      }
    },
    maxItems: 5,
    maxHeight: 200,
    initialItems: 2
  }
});

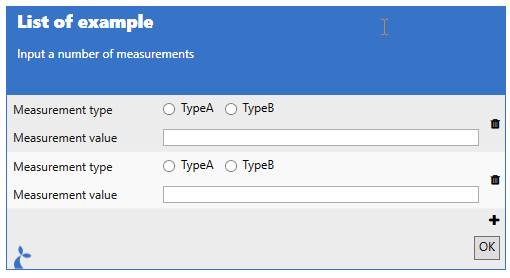

Which will result in the following dialog being shown:

The property values available for a LISTOF input is:

• template which contains an object defining a single input element
• maxItems the max number of items a user is allowed to input,
• maxHeight the max height of the LISTOF input
• initialItems the number of initial items in the LISTOF list

DIVIDER

The DIVIDER type does not support any options.

SPACER

Has no options either, will provide some vertical space.

Validation

Input fields may have a validation object in their options which determines valid values for the inputs. The validation object has the following properties;

• isRequired boolean value indicating whether a value must be supplied for the field,
• regex is a regular expression which must match the given input in order for the field to validate,
• message is an optional message to be displayed in case validation fails.

Use either isRequired or regex, not both at the same time.

Example

var result = Dialog.input(
  'This is a demo',
  'Some description goes here.', {
    'submitOnValidation': true,
    'maxDialogHeight': 1000,
    'maxDialogWidth': 2000,
    'name': {
      'prompt': 'Name',
      'type': 'TEXT',
      'suffix': 'mm'
    },
    'colorRadio': {
      'prompt': 'Choose color',
      'type': 'RADIO',
      'selectBetween': ['red', 'green', 'blue']
    },
    'foo': {
      'prompt': 'Show only on blue',
      'dependsOn': 'colorRadio=blue',
      'type': 'TEXT'
    },
    'colorCombo': {
      'prompt': 'Choose color',
      'type': 'SELECT',
      'selectBetween': ['red', 'green', 'blue'],
      'validation': {'isRequired': true, 'message': "Color must be selected"}
    },
    'header' : {
      'type': 'HEADER',
      'value': 'Header #1'
    },
    'desc': {
      'type': 'DESCRIPTION',
      'value': 'Super long description possible. When a moon hits your eye like a big pizza pie. Thats amore. When the world seems to shine like youve had too much wine. Thats amore. Bells will ring ting-a-ling-a-ling, ting-a-ling-a-ling. And youll sing Vita bella. Hearts will play tippy-tippy-tay, tippy-tippy-tay'
    },
    'date': {
      'type': 'DATE'
    },
    'multi': {
      'type': 'MULTITEXT',
      'prompt': 'Some complex texts',
      'texts': [
        { 'name': 'a', 'prefix': 'pre', 'suffix': 'suf', 'validation': { 'regex': 'a+', 'message': 'Must contain at least one \"a\"' } },
        { 'name': 'b', 'prefix': '>', 'suffix': '<' }
      ]
    }
  }
);
// Now use the input values for something
var name = result.name;
var eyecolor = result.colorRadio;

This will result in the dialog shown below.

It is possible to bypass validation by using the attribute bypassValidation on a button in the dialog. When the user clicks this button then the dialog is closed and the intermediate result is returned to the flow.

Resuming from a partially filled-in form

var inputOptions = {
  'name': {
    'prompt': 'Name',
    'type': 'TEXT',
    'suffix': 'mm'
  },
  buttons: [
      { 'value': 'No', 'isCancel': true },
      { 'value': 'Continue', bypassValidation: true },
      { 'value': 'Ok' },
    ]
  }
};
var results = Dialog.input("Input 1", "1", inputOptions);

if (partialResults.button == 'Continue') {
  // Show an indentical dialog but pre-fill values from Dialog 1
  results = Dialog.input("Input 2", "2", inputOptions, results);
}

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

HTML based input dialog

In addition to the normal native input function we also support using HTML input forms. This approach does not bring as much built-in functionality - validation, conditional displays etc - but offers a larger degree of customization in the appearance of the displayed form. It works by taking the form, either HTML directly or a URL to a page containing the form and then displaying this in a dialog. When the user accepts the form (clicks “ok”) the page is parsed and information about the contents of the individual fields are extracted for use in the flow.

The input values entered can be retrieved from the dialog result by using the name or id property of the input element. For more info on forms see e.g. https://developer.mozilla.org/en-US/docs/Learn/HTML/Forms. For a concrete example with a number of different input elements see e.g. http://sirenia.eu/tutorial/form.html. div tags with a input tag will also be returned - the id of the div will be used as key.

Parameters

• header - [string] the header to display
• text - [string] a longer text to display
• options - [object] containing options for the dialog itself:
  • source - [string] the form to display - either HTML directly or a URL
  • embed - [bool] if true, manatee will add some styling and html/body tags to the page, if false nothing is added
  • maxDialogWidth - [int] the max width the dialog must take
  • maxDialogHeight - [int] the max height the dialog must take
  • throws a boolean indicating whether to throw an exception if the dialog was cancelled - default is true

Example

Source directly as an option.

var result = Dialog.inputHtml(
  'Header',
  'Some more text',
  {
    source: "<input type='text' id='myText'></input>",
    embed: true
  });
// The result will have a `myText` property since we added the `id` property with the value to the input field
Debug.showDialog("Result was "+result.myText);

Using a remote document.

var result = Dialog.inputHtml(
  'Header',
  'Some more text',
  {
    source: "http://sirenia.eu/tutorial/form.html",
    embed: true
  });
// The result will have a `myText` property since we added the `id` property with the value to the input field
Debug.ger(result);

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

---

Flow

The flow object provides a mechanism to invoke other flows. This allows some flows to become superflows connecting multiple flows together. Flows from other applications may also be invoke in this fashion.

Shared functionality

You can use the include(...) method to include code from a MODULE typed flow. This is great if you have some code that you want to share between multiple flows.

The code in the module flow can export its functionality by assigning variables to the global exports object. See the example below.

Parameters

• name the name or subject of the module to include

Examples

We’ll define a handy math module (given the subject = math):

var times = function(a, b) {
  return a*b;
}

var plus = function(a, b) {
  return a+b;
}

var bigNumber = 10000;

exports.times = times;
exports.plus = plus;
exports.bn = bigNumber;

and this can then be used in another flow:

var math = Flow.include('math');
var ten = math.times(2, 5);

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Run flow

Run another flow with the run(...) method. You provide the input to the flow and will get the outputs of the flow.

Parameters

• name the name of the flow to run - if there are 0 or more than 1 flow with this name an Error will be thrown
• environment is a JavaScript object containing the input to the flow. Each property on the object will be mapped to an input. Currently only string values are supported. Inputs are accessed in the running flow with Inputs["<inputname>"] e.g. Inputs["myinput"] or simply <inputname> e.g. myinput (if the is a valid JavaScript identifier).

Examples

var result = Flow.run("MyOtherFlow", { "inputA": "AAA", "inputB": "BBB" });
// "MyOtherFlow" will now get executed, the inputs may be accessed via e.g. Inputs["inputA"] in "MyOtherFlow"
var outputC = result.outputC; // providing "MyOtherFlow" has a defined output called "outputC"

It is possible to chain flows like:

var result = Flow.run("RunLast", Flow.run("RunFirst", {}));

Flow.run to run flows in another session

In order to run a flow in another session you need to provide a third argument to Flow.run. This “session selector” argument can either be a function acting as a predicate on the states of the sessions or a an object that contains keys and values to match.

Using a predicate

We’ll assume we have the following sessions currently available.

• Session 1 with app A (instance 1) has the following state; s1 = v1.
• Session 2 with app A (instance 2) has the following state; s1 = v2.

If we want to run the flow “foo” in session 2 then we do:

Flow.run("foo", null, function(state) { return state["s1"] === "v2"; });

Using a key-value match

Using the same sessions described above we can match session 2 again using a the key-value match:

Flow.run("foo", null, {"s1": "v2"});

The key-value matcher will also create the session if it does not exist - this will not happen using the predicate approach.

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

---

Wait

Wait for seconds

Wait the given amount of seconds.

Parameters

• timeout the number of seconds to wait

Example

Wait.forSeconds(2);

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Wait for milliseconds

Wait the given amount of milliseconds.

Parameters

• timeout the number of milliseconds to wait

Example

Wait.forMilliseconds(200); // Wait for 0.2 seconds

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Wait for field

Wait for the given field to appear - will return when field appear or throw an exception when the given amount of seconds has elapsed.

Parameters

• field the field to wait for e.g. Fields["myfield"]
• timeout the max amount of seconds to wait for the field to appear
• options additional optional arguments
  • pollDelayInMs int, how many ms between checks that the field is present or not - default is 200

Example

Wait.forField(Fields["myfield"], 10);

// Poll every 1s
Wait.forField(Fields["myField", 10, { pollDelayInMs: 1000 });

Support

• ChromeDriver
• JavaDriver

Wait for field to disappear

Wait for the given field to disappear - will return when field disappears or throw an exception when the given amount of seconds has elapsed.

Parameters

• field the field to wait for e.g. Fields["myfield"]
• timeout the max amount of seconds to wait for the field to disappear

Wait.forFieldToDisappear(Fields["myfield"], 10);

Support

• ChromeDriver
• JavaDriver

Wait for window

Wait for the given window to appear - will return when a matching window appears or throw an exception when the given amount of seconds has elapsed. There is also a forWindowToDisappear variant.

Parameters

• title the title of the window to wait for
• timeout the max amount of seconds to wait for the field to appear

Example

// Wait for a window with Notepad in its title to appear, max 10s
Wait.forWindow("Notepad", 10);
// Wait for Notepad to disappear again
Wait.forWindowToDisappear("Notepad", 10);

Wait for lock

Wait.forLock(...) allows for exclusive access to a shared resource among concurrently running flows (from separate sessions) or from other asynchronous tasks (e.g. when using the Task module).

Parameters

• lockName The name of the lock
• callback The function to call with exclusivity under the named lock
• opts Options (default: { timeout: 3000 })

Return value

true if the lock was obtained within the timeout. false otherwise

Example

To access a shared resource with exclusivity:

function accessSharedResourceFn() {
  // Access the shared resource here...
}

if (!Wait.forLock('resourceLock', accessSharedResourceFn, { timeout: 5000 })) {
  throw Error('Failed to access the shared resource');
}

Wait for click

Wait.forClick(...) and Wait.forRightClick(...) can be used to wait for a user to click a given field.

Parameters

• field an instance of a Field to wait for click on
• options an object containing optional arguments;
  • throws bool, if true than an exception is thrown if the field was not clicked before timout has elapsed - default is true
  • timeout int, for how many ms should we wait before giving up - default is 60000

Return value

If option.throw is false then true is returned if the field was clicked, false otherwise.

Example

// Simple wait - will throw error if "OK" is not clicked within 60s
Wait.forClick(Fields["OK"]);

// Do not throw an error and wait only 5s
if (!Wait.forRightClick(Fields["Cancel"], { "throws": false, "timeout": 5000 })) {
  // No click
} else {
  // "Cancel" was clicked
}

---

Xml

The Xml module enables parsing information stored in local or remote xml files.

Load xml

Parse the given string as xml and return an XmlDoc object which can be queried or turned into JSON.

Parameters

• xml an xml formatted string to parse

Example

var d = Xml.load("<hello>world</hello>");

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Load XML from url

Fetch a local or a remote file and parse as xml. Returns an XmlDoc object.

Parameters

• url is a local or remote path to an xml file

Example

// A remote file
var remote = Xml.loadFrom("http://somewhere/over/the/rainbow.xml");
// A local file
var local = Xml.loadFrom("c:\\somewhere\over\the\rainbow.xml");

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

XmlDoc

An XmlDoc is an object that wraps an xml document and which has a few functions for querying the underlying document.

XPath

Execute an XPath query and return the results. The result is a list of objects, each object represents the matching xml node.

Parameters

• xpath a well-formed XPath expression

Example

var doc = Xml.load("<hello>world</hello>");
var allHellos = doc.xpath("//hello");

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

JSON

Returns a JSON/JavaScript version of the document which can then be inspected in the flow.

Example

var doc = Xml.load("<hello>world</hello>");
var docObject = doc.json();

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

---

HTTP

The Http module enables http requests to be sent within a flow.

GET

Send a HTTP GET request. Returns a reply object containing;

• status the http status-code
• data a string containing the data received
• headers an object containing the headers received

Parameters

• url the url to GET
• opts options, an object which may contain the following properties:
  • credentials (optional) for basic-auth - an object containing;
    • user username for the http resource
    • pass password for the http resource
  • headers (optional) an object defining additional headers to include in the request
  • useragent (optional) a string overriding the default useragent
  • timeout (optional, default 60000) how many ms to wait for the request to complete
  • contenttype (optional) the contenttype of the request

Example

// Anonymous
var reply = Http.get("http://somewhere/over/the/rainbow.txt", {});
if (reply.status == 200)  { // Status: OK
  ...
}
// With basic-auth user/pass
Http.get("http://somewhere/over/the/rainbow.txt", { 'credentials': {'username': 'John', 'password': 'ramb0' } });

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

POST

Send a HTTP POST request. Returns a reply object containing;

• status the http status-code
• data a string containing the data received

Parameters

• url the url to POST to
• data a string to POST
• opts options, an object containing additation options for the request (see description in Http.get)

Example

// Anonymous
var reply = Http.post("http://somewhere/over/the/rainbow.txt", "data=123", {});
if (reply.status == 200)  { // Status: OK
  ...
}

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

PUT

Send a HTTP PUT request. Returns a reply object containing;

• status the http status-code
• data a string containing the data received

Parameters

• url the url to PUT to
• data a string to PUT
• opts options, an object containing additation options for the request (see description in Http.get)

Example

// Anonymous
var reply = Http.put("http://somewhere/over/the/rainbow.txt", "data=123" {});
if (reply.status == 200)  { // Status: OK
  ...
}

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

DELETE

Send a HTTP DELETE request. Returns a reply object containing;

• status the http status-code
• data a string containing the data received

Parameters

• url the url to DELETE
• opts options, an object containing additation options for the request (see description in Http.get)

Example

// Anonymous
var reply = Http.delete("http://somewhere/over/the/rainbow.txt", {});
if (reply.status == 200)  { // Status: OK
  ...
}

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

---

FTP

The Ftp module enables reading and writing files on ftp servers.

Read

Read a file.

Parameters

• url the url to the file to read
• opts options, an object which may contain the following properties:
  • user username for the ftp server, blank if anonymous access is allowed
  • pass password for the ftp server

Example

// Anonymous
var data = Ftp.read("ftp://somewhere/over/the/rainbow.txt", {});
// With user/pass
var data = Ftp.read("ftp://somewhere/over/the/rainbow.txt", { 'user': 'John', 'pass': 'ramb0' });

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Write

Write a file to a remote ftp server.

Parameters

• url the url to the file to write
• data the content of the file
• opts options, an object which may contain the following properties:
  • user username for the ftp server, blank if anonymous access is allowed
  • pass password for the ftp server

Example

Ftp.write("ftp://somewhere/over/the/rainbow.txt", "red, green, blue", {});

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

---

Db

The Db module has functionality for connecting to databases. It currently supports sqlite, mssql, msaccess, oracle and postgresql databases.

Connect

The connect method initialises a connection to a given database and returns a Database object.

Parameters

• type the type of the database, currently this should be “mssql”, “sqlite”, “msaccess”, “oracle” or “postgresql”.
• connection the connection-string which contains information about how to connect to the database in question

Example

var db = Db.connect('sqlite', 'Data Source=C:\\MyFolder\\Test.db;Version=3;');

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Database

The database object returned from a Db.connect(...) invocation represents a database connection. It has two primary methods for interacting with a database; query and exec.

Exec

The exec method will execute a non-query (e.g. INSERT, UPDATE) and return the number of affected rows.

Example

var affectedRows = db.exec('CREATE TABLE Test (id int, name string)');

Also supports db parameters:

Db.exec(
  "INSERT INTO Mammals (name, species) VALUES (@name, @species)",
  { "@name": "John", "@species": "Seacow" }
);

The arguments in the 2nd argument must be prefixed with “@”.

Query

The query method is used for queries (e.g. SELECT etc) and returns an array of objects representing the result of the query.

Example

var rows = db.query('SELECT id, name from Test');
for (var i=0; i<rows.length; i++) {
  Debug.showDialog("id="+row.id+", name="+row.name);
}

Begin

The begin() method is used to initiate a transaction.

Example

var tx = db.begin();

Transaction

A transaction object is conceptually similar to the database object. It has the same query and exec methods, but will delay the execution of the query or command until commit() is invoked and of course maintains transactional integrity. If the rollback() method is invoked the query and exec operations already made are discarded.

Commit

A commit() invocation will commit the tx to the db.

Example

tx.exec("INSERT INTO Test (id, name) VALUES (1, 'John')");
tx.exec("INSERT INTO Test (id, name) VALUES (2, 'Jane')");
// Commit John and Jane
tx.commit();

Rollback

A rollback() invocation will rollback the tx.

Example

tx.exec("INSERT INTO Test (id, name) VALUES (1, 'John')");
tx.exec("INSERT INTO Test (id, name) VALUES (2, 'Jane')");
// John and Jane are not needed anyways
tx.rollback();

Database

The database object returned from a Db.connect(...) invocation represents a database connection. It has two primary methods for interacting with a database; query and exec.

Exec

The exec method will execute a non-query (e.g. INSERT, UPDATE) and return the number of affected rows.

Example

var affectedRows = db.exec('CREATE TABLE Test (id int, name string)');

---

Csv

The Csv module can be used for parsing, manipulating and generating comma-separated files.

Parse

The parse method takes a csv formatted string and returns an array of objects or arrays - one for each row in the string. There is also a parseFile variant which is identical to the parse method except that it takes a filename as its first argument.

Parameters

• content the csv string
• options provides the options for the parser

The options object can have the following fields:

• delimeters a list strings used to separate the columns of the content - default is [',',';']
• header can be set to
  • true to indicate that a header is present in the first line of the content or you can set it to an
  • array of strings to provide the header manually (the first line is treated as normal data) or you can
  • leave it or or set it to null (the default) which will cause the parsed result to be an array of arrays instead of an array of objects
• quotedFields which will strip quotes from the data (if present in the content) - default false

Examples

var csv = Csv.parse('foo;bar\n100;200', {header: true})

The csv variable will now contain:

[
  { foo: 100, bar: 200 }
]

or if there is no header:

var csv = Csv.parse('100;200\n300;400', {})

The csv variable will now contain:

[
  [ 100, 200 ],
  [ 300, 400 ]
]

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Stringify

The stringify(arr, quoteStrings, delim) method will take an array of objects or an array of arrays generate a csv string.

Parameters

• arr the array to convert to a csv string
• quoteStrings a boolean value indicating whether to add quotes to strings or not (default false)
• delim the delimeter string to separate fields (default ',')

Example

var arr1 = [['foo','bar'],[1,2]];
var arr2 = [{foo: 3, bar: 4}];
var csvStr1 = Csv.stringify(arr1);
var csvStr2 = Csv.stringify(arr2);

csvStr1 and csvStr2 will now both have the value foo,bar\n1,2.

---

Excel

Load

Load and parse and Excel spreadsheet. It can either return the entire spreadsheet or a selected range of cells. If the header option is set then the returned value will be be a map/object with the column names as keys - otherwise an array is used. If index is set then then values in the index column will be used as keys - otherwise an array is used. If both are set then both dimensions will use values as keys. See the examples below.

Parameters

• file path for an Excel spreadsheet to load
• options options for parsing the spreadsheet - use {} to return the entire spreadsheet
  • table define a table to return
    • range which range does the table reside in e.g. 'A1:D20'
    • header is a boolean to determine if the top row of the header is a table
    • index is a boolean to determine if the initial column is an index column
    • worksheet is the name of the sheet to load data from

Example with simple table

Given the following simple spreadsheet in the worksheet named ‘Sheet1’:

cell 1	cell 2
cell 3	cell 4

The following code will load the spreadsheet and pick out the value stored at cell1.

var table = Excel.load('myspreadsheet.xlsx', {});
var cell1 = table["Sheet1"][0][0];

Example with table with header defined by range

Given the table below, situated in worksheet “Sheet1” at A1:B3:

header 1	header 2
cell 1	cell 2
cell 3	cell 4

Use the following code to pick out cell4.

var table = Excel.load('myspreadsheet.xlsx', { table: { range: 'A1:B3', worksheet: 'Sheet1', header: true } });
var cell4 = table[2]['header 2']; // 3rd row (0 is first row), column with header 'header 2'

Example with both header and index

Given the table below, situated in worksheet “Sheet1” at A1:B3:

	header 1	header 2
I1	cell 1	cell 2
I2	cell 3	cell 4

Use the following code to pick out cell2.

var table = Excel.load('myspreadsheet.xlsx', { table: { range: 'A1:C4', worksheet: 'Sheet1', header: true, index: true } });
var cell2 = table['I1']['header 2'];

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Delete a sheet

Removes a single sheet from the workbook.

Parameters

• filename the path to the excel file to be updated
• sheet the name of the sheet to delete

Example

Excel.deleteSheet('data.xlsx', 'Sheet1');

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Update single cell

Update the value stored in a single cell in a spreadsheet.

Parameters

• filename the path to the excel file to be updated - if the file does not exist a new one will be created
• sheet the name of the sheet to update
• address an “address” to a cell, e.g. “A1”
• value the value to write into the cell

Example

// write 1000 into A3 of Sheet1 in data.xlsx
Excel.updateCell('data.xlsx', 'Sheet1', 'A3', 1000);

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Update multiple cells

Update values stored in a spreadsheet. This method is a lot more performant than the single cell version if you need to store multiple values.

Parameters

• filename the path to the excel file to be updated - if the file does not exist a new one will be created
• sheet the name of the sheet to update
• address an “address” of the starting cell
• values the valued to write into the cells - this should be a 2 dimensional array (like a table)

Example

// The data to write
var data = [
  [10, 20, 30],
  [40, 50, 60]
];
// write data into data.xlsx, Sheet1 starting at A1
Excel.updateCells('data.xlsx', 'Sheet1', 'A1', data);

This will result in a table that looks like:

	A	B	C
1	10	20	30
2	40	50	60

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

---

Settings

The Settings object contains values that can be read/written to affect the behaviour of a flow. The following properties are available:

• CommandRetries (int - read+write) defines the number of times a command is retried before it is considered to fail. Default is 3.
• CommandRetryDelays (Array - read+write) defines the delays in milliseconds between each retry. Default is [100, 200, 400, 800, 1600]. When the number of retries exceed the given delays the last value in this array is used for all overflowing retries.

Example writing a value

Settings.CommandRetryDelays = [100, 100, 100];

Example reading a value

var retries = Settings.CommandRetries;
Debug.showDialog("Retries: " + retries);

Settings.Manatee

The Settings.Manatee object gives read/write access to the settings that govern Manatee itself. The full list of available settings can be seen in the Manatee settings dialog. Settings can be updated one at the time or multiple values in one go.

Note that for most changes to take effect, Manatee must be restarted.

Example writing values

// Set just one setting
Settings.Manatee.set('ProductionGroup', 'MyOwnGroup');

// Set multiple settings
Settings.Manatee.set({
  productionGroup: 'MyOwnGroup',
  mode: 'FullAuto'
});
Manatee.restart();

Example reading a value

var prodGroup = Settings.Manatee.productionGroup;
Debug.showDialog("Production group: " + prodGroup);

---

Log

Stats from running flow

It is possible to have extra stats logged from a running flow - these items will get logged when the flow finishes along with timing and other info.

// Log "foo" and "bar" values
Log.flowStats = {
  foo: 1200,
  bar: "abc"
};
// or
Log.flowStats.qux = true;

Warn

Inserts a warning in the log.

Parameters

• key the key of the message - keep this as a constant
• text the text to insert

Example

Log.warn('greeting','hello there');

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Info

Inserts a informational line in the log.

Parameters

• key the key of the message - keep this as a constant
• text the text to insert

Example

Log.info('greeting','hello there');

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Set log level

Controls the log verbosity of the application driver.

Parameters

• level the new log level. Must be one of the following: none, fatal, error, warn, info, debug.
• options optional additional options
  • useStdOut (defaults to false) boolean value indicating if instrumentation log should go to the application stdout or to manatee log.

Example

Log.setDriverLogging('info', { useStdOut: true });

Support

• ChromeDriver
• JavaDriver

---

HID

The HID modules deals with human-input devices (e.g. mouse and keyboard) and allows us to simulate a low-level input from within a flow.

Block input

You can block the user from providing input via mouse and keyboard for a specified time interval. The user will always be able to abort the block by pressing ctrl+alt+del.

Parameters

• timeout for how long should the user be blocked (in ms)

Example

// Block input for max 2 seconds
var unblock = HID.blockInput(2000);
// Unblock manually after 1s
Wait.forSeconds(1);
unblock();

A notification showing that input is blocked will be displayed as long as the block lasts.

HID.Mouse

The Mouse module can be accessed using HID.mouse or simply Mouse.

Move cursor relative

Move the mouse cursor relative to its current position.

Parameters

• dx the relative pixels to move vertically (positive to move right on the screen)
• dy the relative pixels to move horizontally (positive to move down on the screen)

Example

// Nudge the cursor 10px to the right and 10 down
HID.mouse.moveBy(10,10);

// All mouse functions are chainable meaning you can move, then click.
Mouse.moveBy(10,10).click();

Move to an absolute position

Move the cursor to a specified position on the screen.

Parameters

• x the absolute vertical position to move the cursor to
• y the absolute horizontal position to move the cursor to

Example

// Move to (10,10)
HID.mouse.moveTo(10,10);

Hold a mouse button down

The command will depress the given mouse button until the flow finishes or the Mouse.up function (with the same button as argument) is called.

Parameters

• button the button to hold down (options are Mouse.LEFTBUTTON, Mouse.RIGHTBUTTON or Mouse.MIDDLEBUTTON). If no argument is given the Mouse.LEFTBUTTON is assumed.

Example

Mouse.down(Mouse.MIDDLEBUTTON);

Release a held down mouse button

The command will release the given mouse button.

Parameters

• button the button to hold down (options are Mouse.LEFTBUTTON, Mouse.RIGHTBUTTON or Mouse.MIDDLEBUTTON). If no argument is given the Mouse.LEFTBUTTON is assumed.

Example

Mouse.up();

Click with a mouse button

This command will click (depress, then release) with the given button button.

Parameters

• button the button to hold down (options are Mouse.LEFTBUTTON, Mouse.RIGHTBUTTON or Mouse.MIDDLEBUTTON). If no argument is given the Mouse.LEFTBUTTON is assumed.
• doubleClick a boolean indicating whether the click should be a double-click or not. Default is false.

Example

Mouse.click(Mouse.RIGHTBUTTON);

// Double-click with left button
Mouse.click(Mouse.LEFTBUTTON, true);

---

HID.Keyboard

The Keyboard module contains methods for simulating keyboard key presses. It also contains an alternative to Window.sendKeys which adds ScanCodes to inputs which some applications prefer (Citrix etc).

The Window.sendKeys method has also been modified to be able to invoke the Keyboard.send method. This is done as follows by setting the useHID flag:

Window.sendKeys("{TAB}", { useHID: true });

The keys used in most of the keyboard methods are available on the Keyboard module itself. The full list is also given here:

Keyboard.LBUTTON;
Keyboard.RBUTTON;
Keyboard.CANCEL;
Keyboard.MBUTTON;
Keyboard.XBUTTON1;
Keyboard.XBUTTON2;
Keyboard.BACK;
Keyboard.TAB;
Keyboard.CLEAR;
Keyboard.RETURN;
Keyboard.SHIFT;
Keyboard.CONTROL;
Keyboard.MENU;
Keyboard.PAUSE;
Keyboard.CAPITAL;
Keyboard.HANGEUL;
Keyboard.HANGUL;
Keyboard.KANA;
Keyboard.JUNJA;
Keyboard.FINAL;
Keyboard.HANJA;
Keyboard.KANJI;
Keyboard.ESCAPE;
Keyboard.CONVERT;
Keyboard.NONCONVERT;
Keyboard.ACCEPT;
Keyboard.MODECHANGE;
Keyboard.SPACE;
Keyboard.PRIOR;
Keyboard.NEXT;
Keyboard.END;
Keyboard.HOME;
Keyboard.LEFT;
Keyboard.UP;
Keyboard.RIGHT;
Keyboard.DOWN;
Keyboard.SELECT;
Keyboard.PRINT;
Keyboard.EXECUTE;
Keyboard.SNAPSHOT;
Keyboard.INSERT;
Keyboard.DELETE;
Keyboard.HELP;
Keyboard.VK_0;
Keyboard.VK_1;
Keyboard.VK_2;
Keyboard.VK_3;
Keyboard.VK_4;
Keyboard.VK_5;
Keyboard.VK_6;
Keyboard.VK_7;
Keyboard.VK_8;
Keyboard.VK_9;
Keyboard.VK_A;
Keyboard.VK_B;
Keyboard.VK_C;
Keyboard.VK_D;
Keyboard.VK_E;
Keyboard.VK_F;
Keyboard.VK_G;
Keyboard.VK_H;
Keyboard.VK_I;
Keyboard.VK_J;
Keyboard.VK_K;
Keyboard.VK_L;
Keyboard.VK_M;
Keyboard.VK_N;
Keyboard.VK_O;
Keyboard.VK_P;
Keyboard.VK_Q;
Keyboard.VK_R;
Keyboard.VK_S;
Keyboard.VK_T;
Keyboard.VK_U;
Keyboard.VK_V;
Keyboard.VK_W;
Keyboard.VK_X;
Keyboard.VK_Y;
Keyboard.VK_Z;
Keyboard.LWIN;
Keyboard.RWIN;
Keyboard.APPS;
Keyboard.SLEEP;
Keyboard.NUMPAD0;
Keyboard.NUMPAD1;
Keyboard.NUMPAD2;
Keyboard.NUMPAD3;
Keyboard.NUMPAD4;
Keyboard.NUMPAD5;
Keyboard.NUMPAD6;
Keyboard.NUMPAD7;
Keyboard.NUMPAD8;
Keyboard.NUMPAD9;
Keyboard.MULTIPLY;
Keyboard.ADD;
Keyboard.SEPARATOR;
Keyboard.SUBTRACT;
Keyboard.DECIMAL;
Keyboard.DIVIDE;
Keyboard.F1;
Keyboard.F2;
Keyboard.F3;
Keyboard.F4;
Keyboard.F5;
Keyboard.F6;
Keyboard.F7;
Keyboard.F8;
Keyboard.F9;
Keyboard.F10;
Keyboard.F11;
Keyboard.F12;
Keyboard.F13;
Keyboard.F14;
Keyboard.F15;
Keyboard.F16;
Keyboard.F17;
Keyboard.F18;
Keyboard.F19;
Keyboard.F20;
Keyboard.F21;
Keyboard.F22;
Keyboard.F23;
Keyboard.F24;
Keyboard.NUMLOCK;
Keyboard.SCROLL;
Keyboard.LSHIFT;
Keyboard.RSHIFT;
Keyboard.LCONTROL;
Keyboard.RCONTROL;
Keyboard.LMENU;
Keyboard.RMENU;
Keyboard.BROWSER_BACK;
Keyboard.BROWSER_FORWARD;
Keyboard.BROWSER_REFRESH;
Keyboard.BROWSER_STOP;
Keyboard.BROWSER_SEARCH;
Keyboard.BROWSER_FAVORITES;
Keyboard.BROWSER_HOME;
Keyboard.VOLUME_MUTE;
Keyboard.VOLUME_DOWN;
Keyboard.VOLUME_UP;
Keyboard.MEDIA_NEXT_TRACK;
Keyboard.MEDIA_PREV_TRACK;
Keyboard.MEDIA_STOP;
Keyboard.MEDIA_PLAY_PAUSE;
Keyboard.LAUNCH_MAIL;
Keyboard.LAUNCH_MEDIA_SELECT;
Keyboard.LAUNCH_APP1;
Keyboard.LAUNCH_APP2;
Keyboard.OEM_1;
Keyboard.OEM_PLUS;
Keyboard.OEM_COMMA;
Keyboard.OEM_MINUS;
Keyboard.OEM_PERIOD;
Keyboard.OEM_2;
Keyboard.OEM_3;
Keyboard.OEM_4;
Keyboard.OEM_5;
Keyboard.OEM_6;
Keyboard.OEM_7;
Keyboard.OEM_8;
Keyboard.OEM_102;
Keyboard.PROCESSKEY;
Keyboard.PACKET;
Keyboard.ATTN;
Keyboard.CRSEL;
Keyboard.EXSEL;
Keyboard.EREOF;
Keyboard.PLAY;
Keyboard.ZOOM;
Keyboard.NONAME;
Keyboard.PA1;
Keyboard.OEM_CLEAR;

All the keyboard methods are chainable - meaning you can do:

Keyboard.down(Keyboard.SHIFT).press("f").up(Keyboard.SHIFT);

which will give you an “F”.

Key down

Simulates pressing a key and holding it down (until up is called for the same key).

Keyboard.down(Keyboard.SHIFT);
// or using a case insensitive string
Keyboard.down("shift");

Remember to follow this with an Keyboard.up(key);.

Key up

Simulates releasing a key.

Keyboard.up(Keyboard.SHIFT);

Key press

Simulates a down followed by an up ie a key press.

Keyboard.press(Keyboard.VK_M);

Input

Input is used for pure text input (ie no special- or modifier keys in the string you need to input).

Keyboard.input("Hello, world!");

Send

The send method is used to ship more complex key-sequences to an application. It uses the same format as Window.sendKeys (see https://docs.microsoft.com/en-us/dotnet/api/system.windows.forms.sendkeys.send?redirectedfrom=MSDN&view=netframework-4.8).

// Send 2 TAB keys followed by 'f', 'o', 'o' and then `ctrl+a` to select all.
Keyboard.send("{TAB 2}foo^a");

An optional 2nd argument with options can be given. Currently supported is a wait option to define how long to wait between sending keystrokes.

// Wait 2s between keystrokes
Keyboard.send("abc", { wait: 2000 });

---

Window

The Window module has functionality for dealing primarily with the main window of an application. In contrast the Windows module supports interacting with all the windows on the desktop.

Title

Get the title of the main window. Optionally supply a timeout for the operation - default timeout is 500ms normally.

Example

var title = Window.title();
// or with a timeout of 2s
title = Window.title(2000);

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Minimize

Minimize the main window.

Example

Window.minimize();

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Is minimized

Check if the main window is minimized.

Example

if(Window.isMinimized()) {
  ...
}

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Maximize

Maximize the main window.

Example

Window.maximize();

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Is maximized

Check if the main window is maximized.

Example

if(Window.isMaximized()) {
  ...
}

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Focus

Put focus on the main window.

Parameters

• options optional object with options for focus. Supported options:
  • useCachedUI boolean indicating if UI component lookup should use the UI itself or the underlying model. Defaults to false (underlying model traversal).

Example

Window.focus();

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Send keys

Send keyboard events (simulated typing) to a window. Supports special strings for sending special keys.

Parameters

• keys the keys to send - this is a string
• options optional object with options for sendkeys, supported options:
  • focus [bool] whether to focus the window prior to sending the keys

Example

Window.sendKeys("foo bar");
// or to focus the window prior to sending the keys
Window.sendKeys("foo bar", { focus: true });

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Restore

Restore the main window to a previous state and location.

Example

Window.restore();

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Window with modal dialog shown

Get whether or not a modal (dialog) is shown.

Example

var modalIsShown = Window.modalShown();

Support

• JavaDriver

Shown with title

Get whether or not a window with the given title is shown.

Example

var windowIsShown = Window.withTitleShown("My Window");

Support

• JavaDriver

Dim

Dims the window owned by the flow.

Parameters

• level the amount of dimming, 0-255. 255 is opaque and 0 is transparent.

Example

Window.dim(100)

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

---

Windows

The Windows module has functionality to inspect and manipulate the Windows of the desktop.

All windows

The all() method will return an array of window proxy objects representing all windows on the desktop.

Example

var allWindows = Windows.all();

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Windows for current application

The forApp() method returns an array of window proxy objects representing all the windows of the application.

Example

var applicationWindows = Windows.forApp();

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Primary window

The primary property returns a single window proxy object representing the primary or main window of the application.

Example

var pw = Windows.primary;

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Frontmost/focused window

Get the frontmost or focused window with this command.

Example

var w = Windows.focused;
// and the same can be done via
w = Windows.frontMost;

Window Proxy

The window proxy object returned by the Windows module methods represents a desktop window and can be manipulated with the following methods and properties.

Close

Close the window.

Windows.primary.close()

Move

Move the window to the given x,y coordinates.

var pw = Windows.primary;
// Move the window to (100,100) from the topmost left corner of the screen.
pw.move(100, 100);

Resize

Resize the window to the given dimensions.

var pw = Windows.primary;
pw.resize(100, 100);

Focus

Make the window the focused (topmost) window.

var pw = Windows.primary;
pw.focus();

Maximize

Maximize the window.

var pw = Windows.primary;
pw.maximize();

Minimize

Minimize the window.

var pw = Windows.primary;
pw.minimize();

Restore

Restore the original state of the window (after having maximized or minimized it).

var pw = Windows.primary;
pw.restore();

Screenshot

Grab a screenshot of the window. The screenshot will be returned as a base64 encoded string.

var pw = Windows.primary;
// img is a base64 encoded string
var img = pw.screenshot();

SendKeys

Send keyboard strokes to the window.

var pw = Windows.primary;
pw.sendKeys("abc");

Title

Get the title of the window.

var pw = Windows.primary;
var t = pw.title;

Class

Get the class of the window.

var pw = Windows.primary;
var t = pw.class;

IsPrimary

Get/set whether this window is considered the primary for the application.

var ws = Windows.forApp();
if (!ws[0].isPrimary) {
  ws[0].isPrimary = true;
}

IsMaximized

Get a boolean value indicating whether or not the window is maximized.

var ws = Windows.forApp();
if (!ws[0].isMaximized) {
  // do something then
}

IsMinimized

Get a boolean value indicating whether or not the window is minimized.

var ws = Windows.forApp();
if (!ws[0].isMinimized) {
  // do something then
}

Bounds

Get/set the bounds (location and size) of the window.

var pw = Windows.primary;
var bounds = pw.bounds;

// Move 10px left and down
bounds.x = bounds.x + 10;
bounds.y = bounds.y + 10;
// Decrease width and height with 10px
bounds.width = bounds.width - 10;
bounds.height = bounds.height - 10;

// Update the window bounds with the new values
pw.bounds = bounds;

---

Processes

The Processes module similarly to the windows module is used to enumerate and manipulate processes running on the local machine.

All processes

The all() methods enumerates all processes on the local machine. It returns an array of process proxy objects.

var ps = Processes.all();
for (var i=0; i<ps.length; i++) {
  // then do something with each process proxy
}

Current

Get the current process for the application (for which the flow is defined).

var p = Processes.current;
Debug.showDialog(p.name);

Spawning new processes

The spawn(...) method can be used to create new processes. It takes 3 arguments;

• path to the executable to launch
• arguments for the executable (optional - default null)
• working directory (optional - default null)
• shell (boolean) whether to launch the process in a shell environment - this must be set to true for url-handlers to activate (optional - default false)

It returns a process proxy object fronting the process spawned.

var p = Processes.spawn("C:\\Path\\To\Executable.exe");
Debug.showDialog(p.name);

Process proxy

Kill

Kills a process.

var p = Processes.all()[0];
p.kill();

Wait for a process to exit

The wait(...) method will wait for the given process to exit. It takes an integer, the maximum number of milliseconds to wait for the process as its argument. It returns a boolean indicating whether the processes exited (true) or the given timespan elapses (false).

// Wait max 1s for the first process to exit
if (Processes.all()[0].wait(1000)) {
  // it exited
} else {
  // 1s elapsed
}

Send input (via standard-in)

Sending some input to a running process is achieved with the stdin(...) method.

This can normally only be done for processes spawned by yourself via the Processes.spawn(...)](#spawning-new-processes) method.

var p = Processes.spawn(...);
p.stdin("hello");

Read from process output (standard-out)

Reading from the output of a process is done via the stdout(...) method. It takes an int - the number of lines to read - and returns a task which completes with the lines read as an array of strings once the given number of lines has been read.

This can normally only be done for processes spawned by yourself via the Processes.spawn(...)](#spawning-new-processes) method.

var p = Processes.spawn(...);
var lines = null;
// Read 3 lines, then kill the process
p.stdout(3).then(function(threelines) {
  lines = threelines;
  p.kill();
});
p.wait(20000);
Debug.ger(lines);

It is also possible to read from standard-error output - simply use the stderr(...) method instead of stdout(...).

An alternative approach to reading from stdout when you dont know how many lines you need to read upfront is to use processStdout and processStderr.

var lines = [];
// p is a ProcessProxy
// Here we'll process 100 lines but the termination condition could be anything
p.processStdout(
  function(line) {
    // do something with the given line
    lines.push(line);
    // if you return true the processing will continue - false it will stop
    return lines.length < 100;
  },
  // Deadline is 10s
  10000
);
for (var i=0; i<lines.length; i++) {
  Log.info("Line #"+i+":"+line[i]);
}

Process Id

Get the id of the process.

var pid = Processes.current.id;

Process name

Get the name of the process.

var pname = Processes.current.name;

Process path

Get the path of the executable for the process.

var path = Processes.current.path;

Process working directory

Get the working directory of the executable for the process.

var pwd = Processes.current.wd;

Process mem usage

Get the virtual or private memory (integers) usage of the process.

var virtualMem = Processes.current.vmem;
var privateMem = Processes.current.pmem;

Process exited?

Gets a boolean indicating whether the process has exited.

if (Processes.current.exited) {
  // whoops
}

Process uptime

Gets the number of milliseconds elapsed since the process was spawned (as longs as it has not exited).

var uptime = Processes.current.uptime;

Process arguments

Get the arguments supplied to the process - can only be counted on to return valid arguments if process was spawned by Manatee.

var args = Processes.current.arguments;

---

Debug

Show dialog

Show some text in a debug dialog. Essentially the same as Dialog.info("Debug", text).

Parameters

• text the text to display

Example

Debug.showDialog("hello there");

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

ger

The Debug.ger() method pauses the running flow (as any other dialog) and shows a debugger dialog which includes an inspector and a REPL (read-eval-print loop).

Inspector

The inspector window lets you inspect the global values in the flow as well as the argument given. The variables are displayed in a tree which can be expanded to reveal the structure of the objects.

The debugger shown above was shown with the following code:

var x = { foo:'bar', baz: 123 };
Debug.ger(x);

Expanding the CURRENT node will give you:

You can also explore the global variables (those defined in the outermost) scope of a flow. Here we show a field.

REPL

The REPL tab of the Debug.ger can be used to try running small snippets of code in the context of the current flow. You can do anything via the REPL that you can do in a flow.

Clicking the “Run” button will run the code written and display the time it took to run as well as the result.

This method can also be used as Debug.attach() and Debug.inspect() but some of us prefer the simplicity and raw hipster essence of Debug.ger().

Debug dialog size

You can pass an option object as the second argument. It accepts the following properties:

• maxWidth: Allows control of the width of the debug window

var s = 'data for the variable';
Debug.ger(s, { maxWidth: 1200 });

---

Fs

The Fs module is used to interact with the filesystem of the local machine.

System folders

Provides access to the following system folders:

• tmpfolder: A directory for temporarily storing files
• desktop: The user’s windows desktop
• appdata: The user app data folder. Applications can write user specific data here without requiring administrator privilege
• startup: The folder which contains shortcuts to applications that should start when the user logs in
• personal: The root user folder - eg C:\Users\<user name>

Example

var folder = Fs.tmpfolder;

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

List (ls)

Returns a list of files and directories found in the directory given by the path argument. The path may contain wildcards * in its last segment.

A second option argument can be passed, which can have the boolean property deepMatch. When this property is set to true, files matching the filename given in the path argument in any sub-folder will be returned.

Default behavior is to do a shallow file listing.

Return value

The resulting array can be used as a string array of the paths to the files. It can also be used as an array of objects with detailed information about the files. Each such object has the following properties:

• folder is the folder part of the path. C:\folder\file.txt has the folder path C:\folder.
• path is the full path of the item. Corresponds to the string value of the object.
• extension is the extension of the item. C:\folder\file.txt has the extension .txt.
• name is the name of the item. C:\folder\file.txt has the name file.txt. C:\folder has the name folder.
• readonly boolean value indicating if the file is read only.
• size is the size of the file in bytes.
• created is the time of creation.
• modified is the time of the last modification.
• accessed is the time of the last file access.

The objects further have the following methods: - mv moves the file. Pass the new path as an argument. - cp copies the file. Pass the new path as an argument. - rm deletes the file. - encrypt encrypts the file. - decrypt decrypts the file.

Example

// Get all .txt files prefixed with somefile in somedir
var files = Fs.ls('c:\\somedir\\somefile*.txt');

// Get all .txt files in any sub directory under C:\somedir - at any depth
var files = Fs.ls('c:\\somedir\\*.txt', { deepMatch: true });

// Copy readonly files to a backup sub directory
var readonlyFiles = files.filter(function(file) { return file.readonly; });
_.each(readonlyFiles, function(file) { file.cp(file.folder + '\\backup\\' + file.name)});

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Move file

Move a file to a different path

Example

Fs.mv('C:\\some\\path\\file.txt', 'C:\\some\\other\\path\\file.txt');

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Copy file

Copy a file to a different path

Example

Fs.cp('C:\\some\\path\\file.txt', 'C:\\some\\other\\path\\file.txt');

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Delete file

Delete a file

Example

Fs.rm('C:\\some\\path\\file.txt');

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Check file presence

Determines if a file exists at a given path

Example

if (!Fs.exists('C:\\some\\path\\file.txt')) {
  // Create the file
}

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Encrypt file

Activates windows file encryption for the file at the given path. Only the currently logged in user will be able to read the file.

Example

Fs.encrypt('C:\\some\\path\\file.txt');

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Decrypt file

Deactivates windows file encryption for the file at the given path. Any user will be able to read the file.

Example

Fs.decrypt('C:\\some\\path\\file.txt');

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Read

Read the contents of a file with the read(...) function.

Example

var html = Fs.read('c:\\somedir\\somefile.html');

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Write

Writes arbitrary text to an arbitrary text file. If the file exists, it will be overwritten. If the file doesn’t exist, it will be created with the given contents. The contents are written using UTF-8 encoding without a byte order mark (BOM).

Throws appropriate exceptions if the write fails.

Example

Fs.write('c:\\somedir\\somefile.html', '<html><body><h1>Generated html!</h1></body></html>');

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Synchronise two directories

If you need two synchronise the files in two directories, i.e. make sure all files in the source directory are copied to the destination directory you can use the Fs.sync(...) method.

Examples

// Make sure the two directories are completely synchronised, delete superfluous files from destination
Fs.sync("C:\\MySourceDirectory", "C:\\MyDestinationDirectory");
// uhe same but don't delete those files in the destination directory which are not present in the source
Fs.sync("C:\\MySourceDirectory", "C:\\MyDestinationDirectory", { deleteSuperfluous: false });

Temp file

The tmpfile function will generate a random, non-conflicting filename in the temp folder.

Example

var tmpFilePath = Fs.tmpfile();

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

---

App

The App variable contains functions relating to the app itself.

Location

Returns the current location (if applicable for the given application type – non-webapps do not support this).

Example

var loc = App.location();

Support

• ChromeDriver
• IEDriver

Navigate

Navigates to the given url. If the url is relative (e.g. somefolder/somefile.html) it will get appended to the current url.

Parameters

• url a string representing the destination for the navigation act

Example

// Absolute url
App.navigate("http://dr.dk");

// Relative url
App.navigate("news");

Support

• ChromeDriver
• IEDriver

Session write

Store a value in the current session storage. This will be available across flows and for all applications.

Parameters

• key a string denoting the key to store the value under
• value an object to store
• options an optional options object. Supported options are;
  • expires a timeout in minutes - after this interval has passed the value will be deleted. Default is 1440 min (= 1 day).

Example

// Storing a simple value - a string
App.session().write('mykey', 'myvalue');

// Storing an object - expires in 1 hour
App.session().write('myotherkey', { greeting: 'hello' }, { expires: 60 });

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Session read

Read a value stored in the current session.

Parameters

• key a string denoting the key to retrieve the value for

Example

var v = App.session().read('mykey'); // e.g. will return 'myvalue'

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver


Session delete

Delete a value.

Parameters

• key a string denoting the key to delete

Returns

The value deleted.

Example

var v = App.session().delete('mykey'); // e.g. will return 'myvalue'

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Quit

Quits the application - be aware that this is a hard shutdown and the user will not be prompted to save any information before the application exits.

Example

App.quit();

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Focused field

Returns a special field, which targets the currently focused UI element of the application. This can help in tricky cases where a UI element must be reached by means of tabbing. Using App.focusedField, even such a UI element can support actions like inspect, read and input. App.focusedField can also be used to verify that the focus is where it’s meant to be.

Example

var inspect = App.focusedField.inspect();

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Getting access to an embedded browser instance for native apps

Note: The following only applies to native applications with embedded Internet Explorers.

Use the App.browserAt(path, options) method to get a DOM instance. The path argument is the path to the UI element containing the embedded browser - this normally has the url of the page displayed as its name and you can thus use the url as (part of) the path.

Alternatively you can use an existing field;

var f = new Field("**/Browser");
var b = App.browserAt(f);
// or simply
b = f.asBrowser();

DOM methods

Once you have DOM object you can invoke methods on it and read selected properties.

Title

var b = App.browserAt("**/Browser");
// Access the title
var title = b.title;

Location

var b = App.browserAt("**/Browser");
// Access the location
var url = b.location;

Eval(js)

Eval some JavaScript in the embedded instance.

var b = App.browserAt("**/Browser");
var result = b.eval("(function() { return 'Hello, world!'; })();");

getElementById(id)

Returns a DOMElement (see below) given one with the id exists.

var b = App.browserAt("**/Browser");
var elm = b.getElementById("foo");

getElementsByTagName(tag)

Returns an array of DOMElements with the given tag.

var b = App.browserAt("**/Browser");
var allInputElements = b.getElementsByTagName("input");

querySelector(query)

Returns the first DOMElement matching the given query.

var b = App.browserAt("**/Browser");
var foo = b.querySelector(".foo");

querySelectorAll(query)

Returns an array of DOMElements matching the given query.

var b = App.browserAt("**/Browser");
var allFooClassedElements = b.querySelectorAll(".foo");

DOMElement methods

A DOMElement represents a single element in the DOM. It has the following properties and methods.

TagName

// we assume we have gotten the `elm` from a `DOM` method invocation e.g. via `getElementById`
var tag = elm.tagName;

InnerText, innerHTML and outerHtml

var t = elm.innerText;
var hi = elm.innerHTML;
var ho = elm.outerHTML;

Checked

Applies only to checkboxes and radio buttons.

var isChecked = elm.checked;
// we can also check the input using this property
if (!isChecked) {
  elm.checked = true;
}

GetAttribute(attr)

Get an attribute of the DOMElement.

var id = elm.getAttribute("id");

Click()

Click the DOMElement - only makes sense for elements that are clickable.

elm.click();

Input

Get/set the value of an input- or textarea element.

var content = elm.input;
// update it
elm.input = "foo";

Select()

Selects and element.

elm.select();

---

Sticky

A sticky is a persistent window which can be configured to remain top-most as long as it’s shown. The user is able to interact with the items shown in the sticky e.g. clicking on links, opening pdf previews etc. Keyboard interaction is also supported, use:

Key	Action
↓	Focus next (down) item
↑	Focus last (up) item
.or -	Toggle collapsed state of item
<space>	Run primary action (depends on the type of the item)
<enter>	Run secondary action
<esc>	Close sticky (or exit from search if search field is focused)
any char	Open search field

Open

Open a new sticky window with the given name and opts. The function can be called multiple times with the same name argument in order to update an already showing sticky.

Parameters

• name the name of the window to open, only one sticky-window can have this name
• opts is an object containing the configuration for the sticky, it may have the following properties:
  • embed (boolean, default false) should the sticky be embedded in the window of its owner application? When embed is set to true some of the below options are not relevant
  • resizable (boolean, default false) should it be possible to resize the sticky window
  • movable (boolean, default false) should it be possible to move the sticky window
  • searchable (boolean, default false) should the contents of the sticky be searchable
  • showFooter (boolean, default false) should a foother with a nice logo be shown
  • fontSize (int, default 12) the base font size to use for items in the sticky
  • focusOnUpdate (boolean, default false) when the sticky is updated should we focus the sticky window again?
  • topMost (boolean, default false) should the sticky be top-most always
  • title the title of the sticky window
  • location determining where the sticky should be shown, contains:
    • type which type of position - currently only ‘absolute’ is allowed
    • top px from the top of the screen
    • left px from the left side of the screen
    • width px width of sticky
    • height px wheight of sticky
  • items a list of sticky items to show in the window, each is defined by:
    • type which type of item - see below
    • more depending on the type, see below

Items

We support the following types of items.

GIF

The first is GIF which simply shows an (animated) gif - it may have the following properties:

• source an url for a gif, can be remote or local

ACTION

An ACTION will run the flow with the name given when the sticky is clicked. For the ACTION type the following are valid.

• name the name of the action to launch - this should be unique
• header and body if set these will be shown instead of action name on sticky
• height the height of the item in pixels
• inputs is an object containing the named inputs for the action
• focus whether or not the item should have focus (only the first item with this property set to true will be focused)

PDF document

Will show a pdf with an optional preview. The options are:

• source an url (remote or local) to the pdf to show
• header and body if set these will be shown instead of the source
• linkText an optional text (or unicode icon) to show as a link to the source file
• link an optional link to direct the user to (default is value of source)
• height the height of the preview pane in pixels
• collapsible whether or not the preview should be collapsible (default false)
• collapsed the initial state of the preview (default false)
• saveable whether or not it should be possible to save the pdf (default true)
• printable whether or not it should be possible to print the pdf (default true)
• focus whether or not the item should have focus (only the first item with this property set to true will be focused)

HTML page

Will render a HTML snippet or a whole HTML page into an item. Should be used for render styled text, e.g. headers and such - not recommended for complete pages. Options are:

• source html text or an url (remote or local) to the pdf to show
• height the height of the item
• focus whether or not the item should have focus (only the first item with this property set to true will be focused)

LINK

Will act as a link (e.g. to an internet resource or a local file).

• link the link to activate (when clicked)
• text optional - the text to display (default is the url of the link)
• prefix optional - the text to display before the link text
• suffix optional - the text to display after the link text
• focus whether or not the item should have focus (only the first item with this property set to true will be focused)

Example

Sticky.open(
  'mySticky',
  {
    embed: true,
    location: {
      type: 'absolute',
      top: 100,
      left: 100
    },
    items: [
      {
        type: 'GIF',
        source: 'http://gifs.com/cat'
      },
      {
        type: 'ACTION',
        name: 'SomeOtherAction',
        header: 'Some other action',
        body: 'Click to run'
      },
      {
        type: 'PDF',
        source: 'http://pdfworld.com/arandompdf.pdf',
        link: 'http://pdfworld.com/aboutarandompdf',
        height: 100,
        collapsible: true,
        collapsed: false,
        saveable: false,
        focus: true
      },
      {
        type: 'HTML',
        source: '<h1>Big header</h1><h2>Smaller header</h2>',
        height: 50
      },
      {
        type: 'LINK',
        link: 'http://sirenia.eu',
        prefix: 'Go to ', text: 'Sirenia', suffix: ' now'
      }
    ]
  }
);

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Model

Get the model used to construct the sticky,

Parameter

• name the name of the sticky to retrieve the model for (must be opened prior…)

Example

var m = Sticky.model('mySticky');
// Perhaps do some changes to model m and then
// Sticky.open('mySticky', m);
// to update the stikcy with the changes made to its model

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Close

Close a named sticky.

Parameter

• name the name of the sticky to close (must be opened prior…)

Example

Sticky.close('mySticky');

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Hide

Hide a named sticky.

Parameter

• name the name of the sticky to hide (must be opened prior…)

Example

Sticky.hide('mySticky');

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Show

Show a previously hidden sticky.

Parameter

• name the name of the sticky to show (must be hidden prior…)

Example

Sticky.show('mySticky');

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

---

Timer

The timer module provides a simple interface for timing parts of flows. It is especially useful in combination with our Analytics product allowing you to time crucial parts of your flows.

Start

Start a named timer. If you invoke this method twice with the same name (argument) you’ll reset the timer every time.

Parameter

• name the name of the timer to start

Example

Timer.start('myTimer');

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Log

Log an event on a named timer. Useful only in combination with our Analytics product. The logged event will contain the name of the timer, the milliseconds since the timer was started and the given message.

Parameter

• name the name of the timer to log an event on
• message the message to log

Returns

The number of milliseconds since the timer was started.

Example

Timer.log('myTimer', 'A message goes here');

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Stop

Stop a named timer.

Parameter

• name the name of the timer to stop
• log whether or not a message should be logged

Returns

The number of milliseconds since the timer was started.

Example

// Will log an event and stop 'myTimer'
Timer.stop('myTimer', true);

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

---

Notifications

The notifications module makes it possible to display non-interactive notifications.

Show

Shows a notification.

Parameter

• name the name of the notification, save this for future update invocations
• header the header text to show
• body the body text to show
• options is an object with the following additional options:
  • severity the severity of the notification, choose between “INFO”, “WARN” and “ERROR”. Default is “INFO”.
  • timeout seconds for the notification to show. Default is 30.
  • callback a javascript function to execute when the user clicks the notification. Default null.
  • embed defines whether the notification should be embedded in the current application or shown on the desktop (default is false = show on desktop)
  • sound a string (one of asterisk, beep, exclamation, hand, question) which indicates a system sound to play once the notification is shown.
  • boundsOffset (for embedded notifications) an object with x, y, w and h properties which define the a rectangle inside the current app which will be used to calculate the position of the notification
  • marginTop (for embedded notifications) an integer with the top margin for the topmost notification (can be used to move notifications a bit down or up)

Example

Show an INFO notification for 30 seconds.

Notification.show('hello', 'Seasonal greetings!', 'Felice navidad', {});

Show a WARN for 5 seconds.

Notification.show('warn', 'Its complicated', 'Something broke down', { severity: 'WARN', timeout: 5 });

Notifications with callbacks.

function RaiseTheAlarm() {
  Notification.show('Oh no!', 'You clicked the first notification', { severity: 'ERROR' });
}

// Callback to previously defined function
Notification.show('warn', 'Its complicated', 'Something broke down, click here', { severity: 'WARN', timeout: 5, callback: RaiseTheAlarm });

// Callback to anonymous function
Notification.show(
  'warn',
  'Its complicated',
  'Something broke down, click here',
  {
    severity: 'WARN',
    timeout: 5,
    callback: function() {
      Log.info('clicked', 'Notification was clicked');
    }
  });

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Update

Update the information in an already shown notification.

Parameter

• name the name of the notification
• header the header text to change
• body the body text to change
• options is same as for invoking show

Example

Update the notification named “hello”.

Notification.update('hello', 'Seasonal greetings anew!', 'Merry Christmas', {});

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver


Close

Close an open notification. Notifications will automatically be hidden but this can force that action.

Parameter

• name the name of the notification

Example

Close the notification named “hello”.

Notification.close('hello');

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

---

Tasks

The Tasks module can be used to paralellize parts of a flow. This is useful for e.g. doing concurrent http requests or running background tasks. It is not intended for use with field-operations i.e. interacting with a host applications UI since this interaction cannot be parallelized. Furthermore you should not display dialogs in parallelized tasks as they can block the calling flow.

Run

Use the run method to start a new task.

Parameters

• fun a function to run in parallel

Returns

• a Task object.

Example

Run some tasks and wait for the result.

var t = Task.run(
  function() {
    var i = 0;
    while (i<1000) {
      i = i + 1;
    }
    return i;
  });

// Wait for t to complete or 1000ms to elapse
if (t.wait(1000)) {
  // Access the result
  if (t.done && !t.failed) {
    Debug.showDialog("It completed with result="+t.result);
  } else (t.failed) {
    // only access t.error if t.failed == true
    Debug.showDialog("Took too long or errored? "+t.error !== null);
  }
} else {
  // 1 sec elapsed without the task completing
}

Run a task and execute a function when the task is done.

Task.run(...).then(function(result){
  // do something with the result of the task
});

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver


Wait for all tasks to complete

This is used to wait until all the tasks given as arguments complete or given milliseconds elapse.

Parameters

• tasks - an [array of tasks or javascript functions] to run asynchronously (and then wait for)
• timeout [int] denoting the max number of milliseconds to wait for the tasks to complete

Returns

A [bool] indicating wether or not all tasks completed.

Example

var t = Task.run(function() { ... });
var tasks = [Task.run(function() { ... }), function() { ... }, t];

// Wait for tasks to complete or 1000ms to elapse
if (Task.waitAll(tasks, 1000)) {
  for (var i=0; i<tasks.length; i++) {
    Debug.showDialog("Task "+i+" resulted in "+tasks[i].result);
  }
  Debug.showDialog("It completed!");
} else {
  Debug.showDialog("Took too long");
}

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver


Wait for any tasks to complete

This is used to wait until one of the tasks given as arguments completes or given milliseconds elapse.

Parameters

• tasks - an [array of tasks or javascript functions] to run asynchronously (and then wait for one of)
• timeout [int] denoting the max number of milliseconds to wait for any of the task to complete

Returns

An [int] denoting the index of the first task to complete or -1 if no tasks complete within given deadline.

Example

var t = Task.run(function() { ... });
var tasks = [Task.run(function() { ... }), function() { ... }, t];

// Wait for tasks to complete or 1000ms to elapse
var idx = Task.waitAny(tasks, 1000);
if(idx > 0) {
  Debug.showDialog("We have a winner: "+idx);
} else {
  Debug.showDialog("Took too long. Everybody lost.");
}

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

JavaScript Task

A javascript representation of a .NET task. It has 2 methods; wait(milliseconds) which can be used to wait for the task to complete or the given milliseconds to elapse, whichever comes first and then(func) which can be used to run a function when the task completes.

For an example see the Run method on the Task module.

---

Guid

This very simple module provides utility functionality for dealing with globally unique identifiers - aka standardized random strings. Use these if you need to generate a unique file name or unique string in general.

Get

Returns a new random standard globally unique identifier

Example

var guid = Guid.get();

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

---

Tables

The tables module provides functionality to read and write information stored on Kwanza and accessible from the configuration interface (Cuesta). It is meant to provide an easy way to add mapping or other types of tabular data to a flow. The UI for managing tables are shown below.

Note that only UTF8 formatted csv files are supported.

Navigation

Navigating the indvidual cells in the table can be done via the keyboard in a spreadsheet like manner. alt+<arrow-key> will move the focus depending on the arrow-key pressed. The video below shows an example of this (the keys pressed are shown in the bottom left corner of the video).

Inserting and removing rows

Inserting and deleting rows can also be done via the keyboard. Press ctrl+n to insert a row directly below the currently focused row.

Deleting a row is done via the ctrl+backspace key. It will remove the currently focused row.

Inserting and removing columns

This is done similarly to adding and removing rows but the cursor must be placed in the column header. ctrl+n adds a new column, while ctrl+backspace removes the current.

Shortcuts

Key	Action
alt+↓	Focus cell below
alt+↑	Focus cell above
alt→	Focus cell right
alt+←	Focus cell left
ctrl+shift+a	Insert new row/column
ctrl+shift+backspace	Remove row/column

Read table as a map

The .map function will parse a table as a map, meaning that it will use a given column as an index. This is mainly useful if there is a column with unique values to use for the index. The returned structure will be a map with the column headers as keys.

Example

Given the table named foo:

A	B
idx1	val1
idx2	val2

And the code:

var m = Table.map('foo', 'A');

You’ll get the following object back:

{
  'idx1': { 'A': 'idx1', 'B': 'val1' },
  'idx2': { 'A': 'idx2', 'B': 'val2' }
}

Which can then be used in the following manner:

var idx2val = m['idx2']['B'];
// or if the column names are valid javascript identifiers
var idx1val = m.idx1.B;

Parameters

• name - [string] the name of the table to create a map from
• index - [string] the name of the column to use as an index

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Read table as list of rows

The .rows function will return the raw table as a javascript array of arrays.

Example

Given the table named foo identical to the table from .map and the code:

var m = Table.rows('foo');

You’ll get the following object back:

{
  rows: [
    ['idx1', 'val1'],
    ['idx2', 'val2'],
  ]
}

Which can then be used in the following manner:

var idx2val = m.rows[1][1];

Parameters

• name - [string] the name of the table to create from

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Update the contents of a table

The object returned from both .map and .rows contains a .save function which can be used to write data back to a table.

Examples

Update existing entries

Given the table from the previous examples and the code:

var m = Table.rows('foo');
m.rows[0][1] = 'newval1';
m.save();

Will change the value of the specified cell and update the table. This also works if .map is used:

var m = Table.map('foo', 'A');
m.idx1.A = 'newval1';
m.save();

Add new entries

Adding to a table read by the rows approach:

var m = Table.rows('foo');
m.rows.push(['idx3', 'val3']);
m.save();

This will add a new row with idx3 and val3. When using rows the order of the input elements matter and should match the order of the columns.

The same information can be added when the table is read via the map approach as follows:

var m = Table.map('foo', 'A');
m['idx3'] = { 'A': 'idx3', 'B': 'val3'};
m.save();

Remove entries

Removing a row from a table read by the rows approach is done by removing the corresponding array entry:

var rowToDelete = 0;
var foo = Table.rows("foo");
foo.rows.splice(rowToDelete, 1); // Delete the row w index 0
foo.save();

and the equivalent delete of a entry from a map table:

foo = Table.map('foo', 'A');
delete foo["idx1"]; // Delete the entry with key 'idx1'
foo.save();

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Use the contents of a Table as options for a typeahead

This is achieved by calling the selectFrom method on the structure created by the .map function. The selectFrom function takes either a format string or an object with options to generate the content for a typeahead.

var m = Table.map(...);
m.selectFrom('{{someColumn}} some text {{someOtherColumn}}');

Using a format string (above) and an object with options (below).

var m = Table.map(...);
m.selectFrom({
  format: '{{someColumn}} some text {{someOtherColumn}}',
  minInputLength: 3,
  filterMode: 'contains'
});

---

Env

The env module provides some contextual information for flows.

Username

Get the username for the current user.

Example

var u = Env.userName;

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Name of machine

Get the name of the machine.

Example

var m = Env.machineName;

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Domain

Get the domain for the current user.

Example

var u = Env.userDomain;

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Groups

Get the AD groups for the current user. Includes user name and machine name.

Example

var groups = Env.userGroups;

groups will now be an array of strings.

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Primary screen

Get information about the primary screen of the local machine.

Example

var s = Env.primaryScreen;

s will now be an object like so:

// s
{
  width: 1024,
  height: 768,
  primary: true
}

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Screens

Get information about all the screens attached to the local machine.

Example

var screens = Env.screens;

screens will now be an array of screen objects, like so:

// screens
[
  {
    width: 1024,
    height: 768,
    primary: true
  },{
    width: 1280,
    height: 1024,
    primary: false
  }
]

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

---

Crypto

The Crypto module can be used to encrypt/decrypt secrets and other sensitive information. It can be used together with e.g. the Table module to keep passwords or similar items for use in flows but not visible for other than the intended users.

Encrypt

Make an encrypted string from the given input and access-scope. Access-scope can be:

• Crypto.forUser to allow only the current logged in user to decrypt the information. Decryption may happen on a different machine or using a different application than Manatee, but only the current logged in Windows user will be able to do the decrypt.
• Crypto.forMachine to only allow users on the current machine to decrypt. Again decrypting is not limited to Manatee - any program on the local machine will be able to decrypt.
• a string password to only allow users who know the supplied password to decrypt the message (min 12 characters).
• null or undefined or no argument given to make the encrypted string decryptable only by the Manatee application across all users and all machines.

Examples

// for the current user
var encryptedString = Crypto.encrypt("my secret", Crypto.forUser);
// for the current machine
encryptedString = Crypto.encrypt("my secret", Crypto.forMachine);
// for users with the correct password
encryptedString = Crypto.encrypt("my secret", "password12345678");
// for Manatee eyes only
encryptedString = Crypto.encrypt("my secret");

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Decrypt

Take an ecnrypted string and decrypt. Supply it with the same access-scope used when the string was encrypted.

Examples

// for the current user
var originalString = Crypto.decrypt(encryptedString, Crypto.forUser);
// for the current machine
originalString = Crypto.decrypt(encryptedString, Crypto.forMachine);
// for users with the correct password
originalString = Crypto.decrypt(encryptedString, "password12345678");
// for Manatee eyes only
originalString = Crypto.decrypt(encryptedString);

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

---

Clipboard

The Clipboard module lets you interact with the windows clipboard for programmatic copy and paste purposes.

Get

Get the current string value of the system clipboard

Examples

var copyValue = Clipboard.get();

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Set

Sets the current value of the system clipboard to a string. By default, the value is only available for pasting until the flow has ended. If you need to be able to paste the value after the flow has ended, use the persist option as shown below. It is best not to use the persist option when sensitive data is put in the clipboard.

Examples

Clipboard.set('This text can be pasted by the user or by the flow until the flow has finished');

Clipboard.set('This text can be pasted even after the flow has finished', { persist: true });

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Clear

Clears the current value of the system clipboard. Useful if the flow needs to temporarily put sensitive data in the clipboard.

Examples

try {
  Clipboard.set('This is not for everyone to see');
  Clipboard.paste();
} finally {
  Clipboard.clear();
}

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Copy

Carries out a standard copy (Ctrl + c) operation

Examples

Clipboard.copy();
var copiedValue = Clipboard.get();

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Cut

Carries out a standard cut (Ctrl + x) operation

Examples

Clipboard.cut();
var cutValue = Clipboard.get();

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver

Paste

Carries out a standard paste (Ctrl + v) operation

Examples

Clipboard.set('some text to paste');
Clipboard.paste();

Support

• ChromeDriver
• IEDriver
• JavaDriver
• NativeDriver


---

Desktop

The Desktop module is a Windows 10 only can be used for manipulating virtual desktops and for moving application windows between desktops.

All

Get a list containing the ids of all virtual desktops.

Example

var desktops = Desktop.all();
for (var i=0; i<desktops.length; i++) {
  Debug.showDialog("Desktop "+desktops[i]);
}

Current

Get the id of the current/active virtual desktop.

Example

var current = Desktop.current();

Add a new desktop

Will create a new virtual desktop and return its id.

Example

var d = Desktop.add();

Moving windows between virtual desktops

The moveWindow, moveWindowRight and moveWindowLeft methods can be used to move a window between virtual desktops.

Example

// Move the window of the current application to an identified desktop (123)
var success = Desktop.moveWindow("123");
// Move window to the desktop to the right of the current desktop
var idOfDesktopMovedTo = Desktop.moveWindowRight();
// ... same for left
idOfDesktopMovedTo = Desktop.moveWindowLeft();

Switching between desktops

Use the switchTo, switchRight and switchLeft methods to switch between virtual desktops.

Example

// Switch to an identified desktop
var idOfDesktopSwitchedTo = Desktop.switchTo("123");
// Switch to a desktop to the left/right of the current
vidOfDesktopSwitchedTo = Desktop.switchLeft();
idOfDesktopSwitchedTo = Desktop.switchRight();

---

Html parsing and querying

The Html module can be used to parse and query html formatted files and remote pages.

Loading data

The methods load and loadFrom can be used to load and parse a html document. They both return a HtmlDoc object which can be used for querying/extracting information.

Example

// Load html from a string
var doc = Html.load("<html><body>Hello, world!</body></html>");
// Load html from an url
doc = Html.loadFrom("http://sirenia.eu");

HtmlDoc

The HtmlDoc object return from Html.load and .loadFrom has two primary methods for querying and extracting information from the html document it represents - the first is via an XPath query and the second is to convert the html to json.

XPath

The xpath method can be used to query the HtmlDoc with a given XPath query.

Example

var d = Html.load("<html><body>Hello</body>");
var body = d.xpath("//body");
Debug.showDialog(body.innerText); // shows "Hello"

Converting to json

Converting the html to json is done with the .json() method. Each node in the resulting tree of objects has the following properties:

• attrs an object containing the attributes of the html node
• children is an array of child json nodes
• innerText is a textual representation of the contents of the node
• tagName is the name of the original html node

It also has an xpath method which can be used to query the subtree of the json node.

Example

var d = Html.load("<html><body>Hello</body>");
var json = d.json();
Debug.showDialog(json.tagName);

QuerySelectorAll

Use the querySelectorAll method to query the HtmlDoc using CSS selectors.

// We'll assume we have a `HtmlDoc` d
var myClassDivs = d.querySelectorAll("div.myClass");

QuerySelector

The querySelector works similarly to the querySelectorAll except it returns the first hit only.

Table

The table(...) function can be used to extract js objects from html tables.

Given the table:

<table id="myTable">
  <thead>
    <tr><td>A</td></tr>
  </thead>
  <tbody>
    <tr><td>100</td></tr>
    <tr><td>200</td></tr>
  </tbody>
</table>

We can use the table function as follows:

// Assume we have the html already loaded in `d`
var t = d.table("#myTable");
// and now we can query the contents of the table as follows
var firstRowFirstColumn = t[0]["A"];

if the table does not have header information then the function will return a double array.

We can also use an object to pinpoint the header and/or the body of the table. This is useful if we have on our hands a table where the header is one location while the data is somewhere else. This is often the case for scrollable tables.

<table id="myTableHeader">
  <thead>
    <tr><td>A</td></tr>
  </thead>
</table>
<table id="myTableBody">
  <tbody>
    <tr><td>100</td></tr>
    <tr><td>200</td></tr>
  </tbody>
</table>

Now do this:

// Assume we have the html already loaded in `d`
var t = d.table(
  {
    headerAt: "#myTableHeader thead tr th",
    rowAt: "#myTableBody tbody tr"
  }
);
// and now we can (again) query the contents of the table as follows
var firstRowFirstColumn = t[0]["A"];

The headerSelector needs to point out the individual header elements, typically th elements, while the rowSelector must point out the tr elements in the table.

---

Tracer

The Tracer module enables remote (via flows) controlling of the tracer functionality. To enable the UI of the Tracer open the settings for Manatee and search for “Tracer”. When the UI is enabled it will show a small window (notification-style) in which output from the current flow is shown. Output includes which API functions are called, which fields are interacted with etc. The window also holds buttons to pause, resume and step forward in the flow as well as a button to pause and bring up the debug.ger window. By using this module in a flow you can control much of the same functionality.

Note that care should be taken using the Tracer functionality in production flows. It is primarily a developer tool.

Delay

The delay methods controls how fast your flow is running. By setting a >0 delay you can slow down your flow.

Example

// Delay each flow "step" 1s
Tracer.delay(1000);

Pause

Allows you to pause the flow. Resuming can only be done in the flow-tracer UI.

Example

Tracer.pause();

Resume

Resume a paused flow. Be aware that you can only resume a flow using this method if it is running asynchronously.

Example

Tracer.resume();

Message

Show a message in the Tracer UI.

Tracer.msg("Hello from a flow");

---

Manatee

The Manatee module allows flows to shutdown and restart Manatee itself.

Shutdown

This shuts down Manatee. Use with caution - especially when running the flow on many machines at once as there is no easy way to reverse such an action. The shutdown occurs after the flow has completed. For immediate (mid-flow) shutdown, pass true as an argument. Note that this is not a good way to abort a flow.

Example

Manatee.shutdown();

Restart

This restarts Manatee. The restart occurs after the flow has completed. For immediate (mid-flow) restart, pass true as an argument.

Example

Manatee.restart(true);

---

HL7

The HL7 module can be used to parse content in the hats-and-pipes format and get JSON back.

Parse

The parse(...) method takes an HL7 message (as a string) and returns an object as a Javascript representation of the message. For an idea of the structure you can consult a tool like http://hl7.eu/refactored/seg.html.

Example

// Read the hl7Message from e.g. a file
var hl7Object = HL7.parse(hl7Message);
// Access the first-name of the patient (if available)
// See http://hl7.eu/refactored/segPID.html#108  and http://hl7.eu/refactored/dtXPN.html
var firstName = hl7Object["PID"][0]["5"]["1"];
